What Is the Thread Size of a Spark Plug

Finding the thread size of a spark plug is essential for replacing or upgrading your ignition system. This guide walks you through simple steps using common tools like calipers or measuring tape. You’ll also learn about standard sizes, why accuracy matters, and how to avoid costly mistakes.

Key Takeaways

• Thread size defines compatibility: It ensures the spark plug fits securely in your engine’s cylinder head without damaging threads.
• Most spark plugs use metric measurements: Common sizes include 14x19mm, 18x13mm, and 10x12mm, but always verify with your vehicle manual.
• Measuring requires precision: Use a digital caliper for best results—hand measurements can lead to incorrect replacements.
• Incorrect sizing causes engine problems: Too loose or too tight threads may result in misfires, overheating, or stripped holes.
• Vehicle-specific data is reliable: Always cross-check thread size with OEM specifications rather than guessing from aftermarket packaging.
• Tapered vs. straight threads matter: Some engines require tapered-thread plugs; others use straight-thread designs—mismatching leads to poor sealing.
• Tools like thread gauges help identify size quickly: These compact devices compare against known standards without disassembly.

Quick Answers to Common Questions

Tip/Question?

Answer: Yes! Most spark plug thread sizes are stamped near the base. Look for markings like “M14x1.25” or “14X19”. This is the quickest way to identify size without tools.

Tip/Question?

Answer: Use a digital caliper for accuracy. Hand estimates often miss tiny differences in diameter or pitch, leading to improper fitment.

Tip/Question?

Answer: Always check your vehicle’s service manual first. OEM specifications are the most reliable source for correct thread size and torque settings.

Tip/Question?

Answer: Never reuse old anti-seize on tapered-thread plugs—it can interfere with the self-sealing action. Clean threads thoroughly before installation.

Tip/Question?

Answer: If you’re replacing multiple plugs, label each one with its size and vehicle location. This avoids confusion during future maintenance.

How to Avoid Common Mistakes

Even experienced DIYers sometimes mix up thread sizes, especially when working with older vehicles or importing parts. Here’s how to steer clear of errors:

• Don’t rely solely on packaging: Aftermarket brands sometimes list incorrect sizes on boxes. Always double-check with a caliper or OEM manual.
• Beware of similar-looking sizes: M14x1.25 and M14x1.5 may look alike, but the different pitch means they won’t thread in properly.
• Check taper vs. straight threads: Tapered-thread plugs self-seal under torque. Straight-thread ones need anti-seize and careful tightening to prevent leaks.
• Never force a plug into a hole: If it doesn’t turn smoothly, stop—you likely have the wrong size. Forcing it risks stripping the aluminum head.

Troubleshooting Thread Size Issues

If you’ve installed a new spark plug and notice issues like rough idle, misfires, or white smoke from the exhaust, thread size could be the culprit. Here’s how to diagnose and fix related problems:

What Is the Thread Size of a Spark Plug? A Complete How-To Guide

Ever wondered why one spark plug won’t fit your engine while another fits perfectly? The answer often lies in something small—but critical: the thread size of a spark plug. This measurement determines whether the plug will screw into your engine’s cylinder head safely and seal properly. Whether you’re diagnosing an old engine, upgrading performance parts, or just replacing a worn-out plug, knowing how to identify and measure thread size is essential.

In this guide, we’ll walk you through exactly what thread size means, why it matters, and how to find it—whether by checking your vehicle manual, using physical tools, or reading markings on the plug itself. By the end, you’ll know not only how to measure thread size accurately but also how to avoid common pitfalls that could damage your engine.

Why Thread Size Matters for Your Engine

The thread size of a spark plug refers to the diameter and pitch (distance between threads) of the external threads on the plug’s body. It’s usually expressed as two numbers separated by an “x”, such as 14×19 or 18×13. The first number is the outer diameter in millimeters, and the second indicates the thread pitch.

This isn’t just about fitting the plug into the hole—it affects how well the plug seals against combustion heat and pressure. If the threads are slightly off, even by millimeters, the plug may leak gases, overheat, or fall out entirely during operation. In severe cases, stripped threads in the cylinder head can render the engine unusable without expensive repairs.

Additionally, modern engines often have specific thread requirements based on design—some use tapered threads for better sealing, while others rely on straight threads tightened with anti-seize compound. Using the wrong type can compromise performance and longevity.

How to Measure Spark Plug Thread Size

Finding the correct thread size doesn’t require advanced engineering skills—just a few basic tools and attention to detail. Below is a step-by-step method to determine your spark plug’s thread size accurately.

Step 1: Remove the Old Spark Plug

If you already have the spark plug installed, carefully remove it using a spark plug socket and ratchet wrench. Turn counterclockwise until it loosens. Be gentle—cracked porcelain or damaged electrodes can make removal tricky.

Step 2: Inspect the Threads Visually

Look closely at the threaded portion of the plug. Most manufacturers stamp the thread size directly onto the side of the plug body near the base. For example, you might see “14X1.25” or “M14x1.25.” This is the easiest way to identify size without tools.

Step 3: Use a Digital Caliper for Precision

For those who don’t trust stamped labels (or if the marking is faded), use a digital caliper to measure the outer diameter. Open the jaws wide enough to slide around the threaded section, then close them gently until snug. Read the measurement in millimeters.

Step 4: Determine the Thread Pitch

Pitch is the distance between two adjacent threads. You can measure this by placing the caliper across multiple threads and dividing the total distance by the number of spaces. Alternatively, wrap a piece of soft wire around the plug three times, mark the overlap, and measure that length—then divide by three.

Step 5: Compare Against Standard Sizes

Once you have both measurements, match them to standard spark plug thread sizes. Common combinations include:

• M14 x 1.25 mm (used in many Honda, Toyota, and Nissan engines)
• M18 x 1.25 mm (common in larger GM V6 and V8 engines)
• M10 x 1.0 mm (found in some small motorcycles and lawn equipment)
• M12 x 1.25 mm (appears in certain European models)

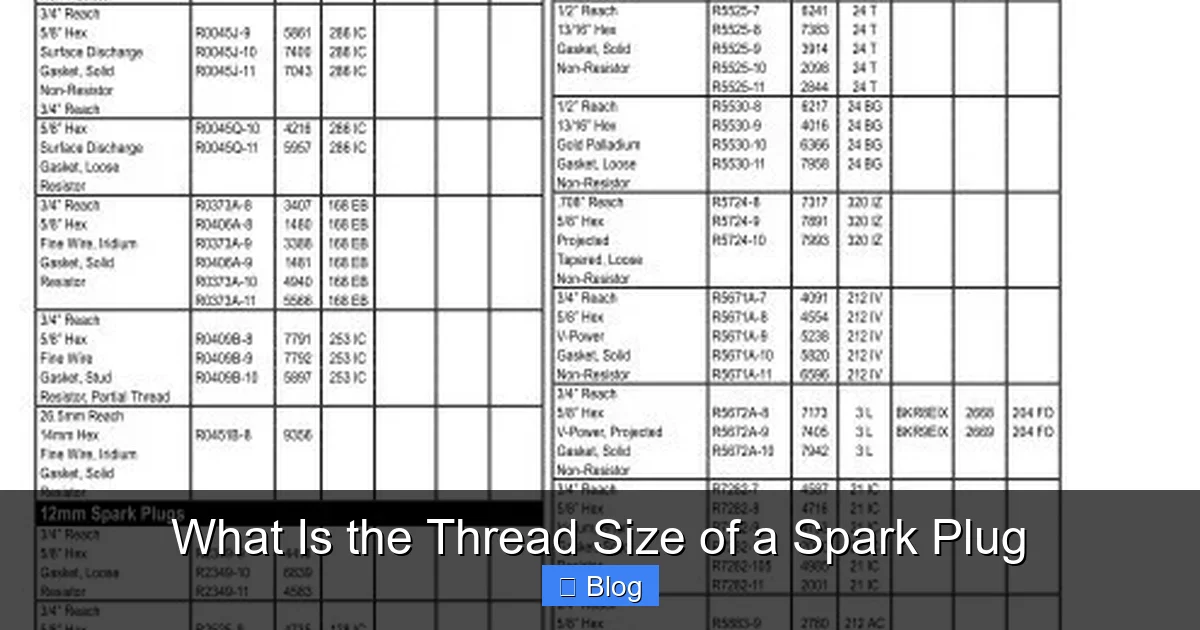

Quick Reference: Common Spark Plug Thread Sizes

Typical Thread Diameter and Pitch Measurements

Thread Size (MM)	Common Vehicles	Notes
14 x 1.25	Honda Civic, Toyota Camry, Ford Focus	Straight threads; most common passenger car size
18 x 1.25	Chevrolet 5.7L V8, Dodge Ram 3.0L	Larger diameter; used in high-displacement engines
10 x 1.0	Kawasaki Ninja, Husqvarna motocross bikes	Compact size; found in smaller internal combustion engines
12 x 1.25	Volkswagen Golf, Audi A4	Taper-mandrel thread design; requires specific installation
14 x 1.5	Some Subaru WRX models	Rarer pitch; check OEM specs before replacement

Problem: Spark Plug Won’t Screw In

This usually means the thread diameter is too large. Try a slightly smaller size, but never force it. If the hole feels tight, inspect for debris or warped sealing surfaces.

Problem: Loose or Wobbly Plug

A plug that turns freely without resistance suggests it’s too small. Replace with one matching the exact thread dimensions. Use a thread gauge to confirm fitment.

Problem: Combustion Leaks or Overheating

Improper thread engagement prevents proper heat transfer. Ensure full contact between the plug base and cylinder head. Consider using OEM-specified torque values (typically 15–20 ft-lbs).

Problem: Stripped Threads in Cylinder Head

This is serious. If threads are stripped, consult a mechanic. In mild cases, Heli-Coil inserts can restore the hole; otherwise, machining and replacement may be needed.

When to Consult a Professional

While most thread size identification is straightforward, complex engines (like those with custom headers or turbo setups) may require specialized knowledge. If you’re unsure after measuring or suspect deeper damage, bring the old plug and vehicle info to a trusted auto shop. They can cross-reference databases and verify compatibility quickly.

Conclusion: Accuracy Protects Performance

Understanding the thread size of a spark plug is more than a technical detail—it’s a key factor in engine health and performance. From preventing leaks to ensuring reliable ignition, getting this right saves time, money, and frustration. Whether you’re measuring with calipers, reading stamped codes, or comparing against vehicle specs, take your time. A few minutes of careful inspection today prevents hours of trouble tomorrow.

Remember: there’s no universal spark plug size. Every engine is designed differently, and even slight variations in thread geometry can have big consequences. When in doubt, refer to your owner’s manual or consult a professional. With the right approach, you’ll keep your engine firing smoothly—for years to come.
